2Color Melamine Dinnerware Molding Machine

suitable for the melamine, urea, bakelite, fiber and other thermosetting material production of tableware products. Such as bowl, cup, dish, chopsticks, spoon, plate, smack-box, starch imitation porcelain tableware plant fiber imitation porcelain tableware plate fiber imitation procelain tableware and so on.

  • item no.:

    SH-200TONS
  • lead time:

    20DAYS
  • product orgin:

    CHINA
  • brand:

    Shunhao
  • shipping port:

    XIANMEN SEA PORT
  • payment:

    TT/LC
inquiry now
features
1:Stable vertical pressuere,the air release frequence is up to 99times at most,pressing time and air release time can be freely set and adjusted,the air releasing distance can be freely set
2:Pressing circulation system model is also available under customers requirements,closing&opening of mold in the beginning is operated at low speed,then synchronize with high speed mold clamping and returning,it is not only protect the molds but also save time
3:Easy and automatic operation,without noise
4:suitable to be used in the molding operation of urea and rubber,melamine
Melamine Dinnerware Compress
1 Machine name:

SHUNHAO Melamine Machine Melamine Machine Of Other Brands Notes
2 Model:

Machine model standard

Some models are smaller


3 Nominal pressure of main cylinder:

Standard
Standard


4 Maximum working pressure:

Standard

Standard


5 Diameter of master cylinder piston:

The size of cylinder diameter is standard or larger

standard and partially smaller


6 Working stroke of main cylinder:

560mm for those above 200T

450-550mm for those above 200T


7 Adjustable workbench spacing:

Large Large or Small
8 Effective working surface:

Standard

Different standards


11 Tension column (heat treatment grinding)

The surface is high temperature and hardened with watermill and plating, and is wear-resisting and polished.

The ordinary plating finished surface is not abrasion resistance and easy to be scratched


12 Oil pressure pumping:

Japanese standard series, durable in use

Brands selected have poor public reputation at home.


13 Specification of motor

Taiwanese Brand

Chinese mainland brand


14 Computer system

The low temperature main engine used in Taiwan brand, without high temperature aging and with stable performance, quick response and long service life. The memory card makes program update convenient.

Taiwanese Shihlin or Japanese Mitsubishi. The integrated circuit appears high temperature aging easily and faults in breakdown, output, power and connection are frequently happened in the service life of 3-6 years.


15 Oil piping system

The newest efficient oil pipe in 2016 with quick response, fast speed and strong stability. The configuration of oil valve is reasonable for convenient and simple maintenance.

The oil pipe in 1990 has remained unchanged until 2017, without any progress, which has failed to meet requirements of modern process and output. With ordinary performance, slow action and messy system configuration, the maintenance must be done by skilled labors.



16 Capacity and efficiency

The output of the same products in 24 hours is 150 to 200 higher than that of other factories. The conformity rate of finished products reaches 95%.

The low output has failed to yield profit for the factory. The factory doesn’t know the yield gap and the backwardness without compariso


17 Mechanical operation

The operational motion is set and the interface integration is simplified. Workers’ training is easy to get started. The various new special functions can deal with more product categories and diversified change of raw materials.

The worker training is difficult, due to the multiple setting interfaces. The system operation is basically the same as that one in 1990. No functions are newly increased except for the change of digital readout. It is only a brand without innovation and particularity.

The digital readout easily disturbs the computer and causes strange faults. Big error exists between operating position and actual setting. The maintenance cost is high and the installation is simple.

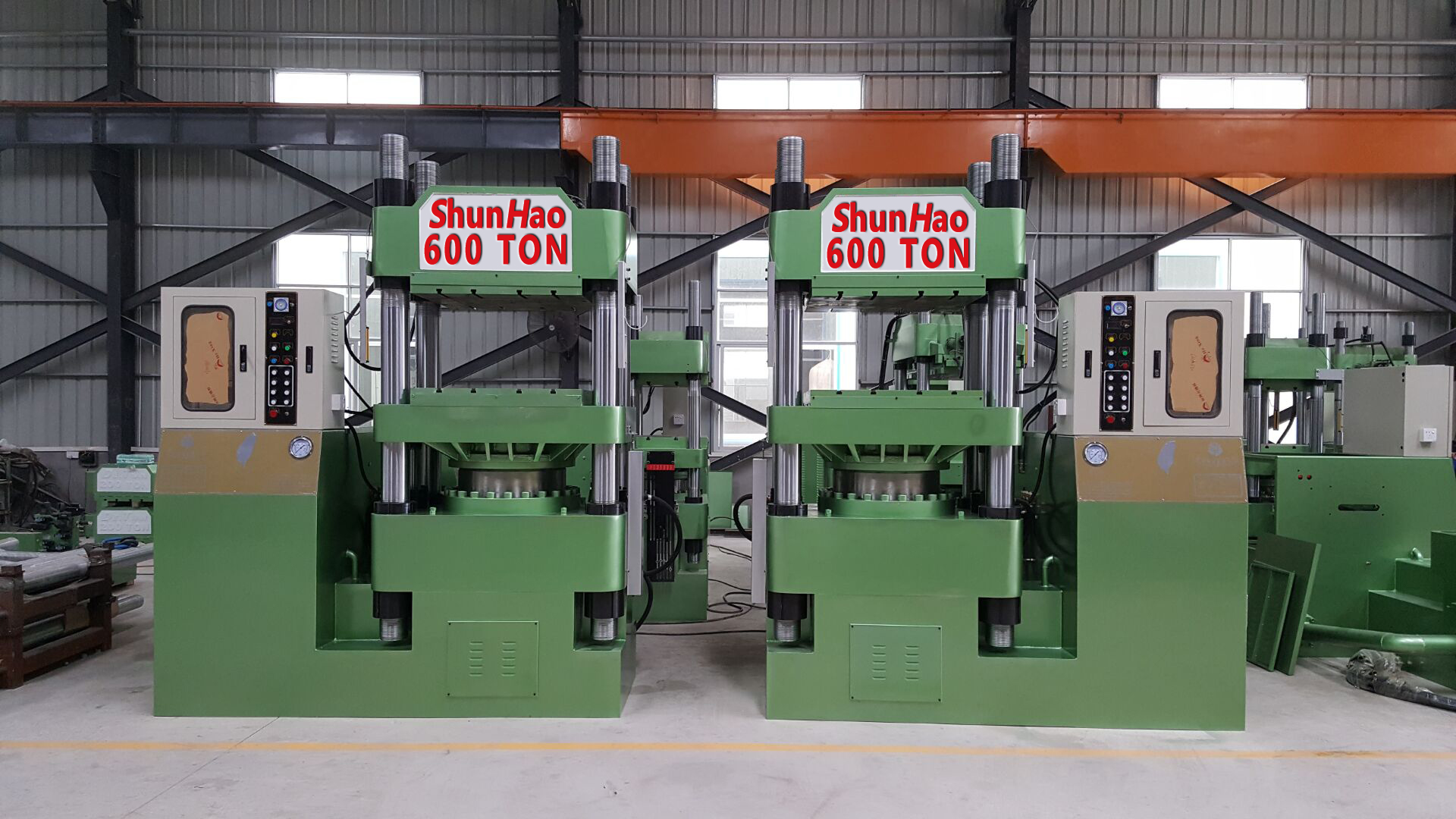

Melamine Dinnerware Compress Machine
18 Components in oil hydraulic system:
(1) Oil pump: High performance PV2R1 double vane pump of Japanese joint venture KASITER brand
(2) Valves: Solenoid directional valve and plate valves are the original famous Taiwan brands, with strong anti-pollution capacity and good working performance.
(3)Sealing elements of main cylinder: Adopt Japanese original NOK PU sealing ring with compression resistance, abrasion resistance and long service life
Melamine Crockery Compress
19. Circuit control system:
(1) Adopt computer-control system
(2) The PLC host and the pressure module adopt the original Taiwan brand of VIGOR.
(3) Human-computer interface: Adopt Japanese brand of Fuji
(4) The mold temperature is controlled by SSR solid-state relay, quiet without noise and with long service life.
(5) The pressure is set and controlled by pressure sensor of German brand and pressure modules accurately.
20. Mechanical system:
(1) The main casting is the high-strength nodular cast iron, suitable for long-term operation under high pressure condition via mechanics design.
(2) The master cylinder piston is made of white iron, with smooth and wear-resisting surface and durable service.
21. The oil pipe is controlled by restricted pressure and can realize fast or slow ascent and descent; the system has the function of decompression separately.
22. The main machine separates from electric cabinet and oil hydraulic system to realize convenient disassembly.
23. The oil piping systems are high-speed control system.
24. Asbestos board is used for the thermal insulation of electric hot plate on the machine.
25. The control of vertical stroke of the machine is the close-spaced inductive control.
Details of Main Parts on Melamine Machine
Name of parts

Brand

Model

Place of origin

Notes

Parts  oil cylinder

Nodular cast iron

FCD-50

China, with investment from Taiwan


Master cylinder piston


White cast iron

Domestic


Inlet oil seal

NOK
Japan


PLC host

VIGOR


Taiwan


Pressure modu

VIGOR 3A


Taiwan
Human-computer screen

FUJI 7 inches and colors

Japan
Pressure monitor

KAVLCO


Germany


Solenoid valve

Victor Taichung


Taiwan
Oil pressure valve

YUTIEN


Taiwan
Thermometer

IDEC-72D


Taiwan
Dual pressure pump

KEISTER


Sino-Japanese Joint Venture


Motor



TaiwaN
Special notes:
1. Safety device with photoelectric sensor is added to the machine (comply with the standard configuration of our company).
2. Spare parts are attached to the machine in delivery (comply with the standard configuration of our company).

Note: Parts listed in the above table are for preference only; it is subject to change without prior notice. The parts actually assembled on the machine shall prevail.
Melamine Dinnerware Compress Machine
Spec SHM-150T SHM-200T SHM-300T SHM-400T
Clamping Force-Ton 150 250 300 400
Plate Size-mm 660*620 680*620/720*720 720*720/900*860 900*860
Cylinder Diameter-mm 300/315 368 450 500
Stroke-mm 480 580 560 560
Daylight-mm 680 780 810 950
Pump Pressuer-kg/cm3 210 210 210 210
Motor-hp 7.5 10 15 15
Heater Capacity-kw 15 20 21.6 40
Oil Reservoir Capacity-gallon 100 120 200 250
Machine Size-L*W*H(MM) 2720*1890*2600 2300*1350*3000 2650*1850*2670 2650*1780*2870
Net Weight Approx-kgS 5000 5300/7650 8970/10500 11000

We are the factory of Melamine Dinnerware Compress Machine,Melamine Crockery Compress Machine,Melamine Tableware Compress Machine,Welcome to visit our factory
