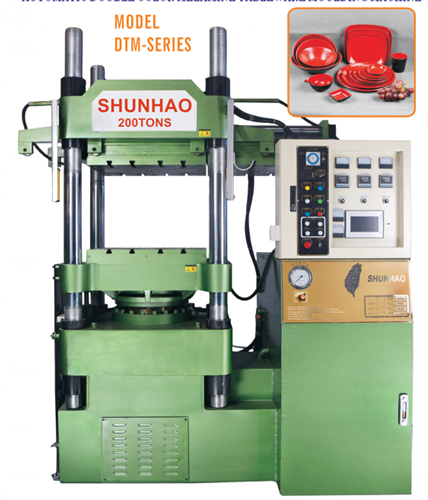

Double color melamine tableware press machine

QuanZhou ShunHao Melamine Moulds Co.,Ltd , As the professional manufacturer of quality mould and machine for varity of Melamine Tableware

item no.:
SH-300TONS
product orgin:
CHINA
brand:
Shunhao
shipping port:
XIANMEN SEA PORT
payment:
TT/LC
MOQ:
1

inquiry now

features

Double Color Melamine Tableware Press Machine

NO PARTS L LI I ST Q.T.Y REMARKS
1 OIL TANK 1
2 PRESSURE GAUGE 1
3 BOX FOR ELECTRIC 1
4 OIL COVER 1
5 NUT 8
6 PARALLELGUIDES/TIE-BAR 4
7 VENTING PORTDES 1
8 MACHINE BASS 1
9 LITMIT SWITCH BOARD 1
10 LITMIT SWITCH SET 1
11 SLICKEN BLOCK ROLLER 2
12 BLOCK 8
13 HYDRAULTC CYLINDER 1
14 SUB.CYLINDER 2
15 PISTON 1
16 MOVUNG BOLSTER 1
17 DOWN HEATING PLATE 2
18 UPPER BOLSTER 1
19 IN-LINE.PREFILL VALVES 1
20 OIL PIPE 4
21 NUT 8
22 L UPPER-MOLD TEMPERATURE 1
23 R UPPER-MOLD TEMPERATURE 1
24 DOWN MOLD TEMPERATURE 1
25 IRON PLATE 3
26 ASBESTOR PLATE 2
27 OIL LEVEL 1
28 L HEATING PLATE 1
29 R HEATING PLATE 2

30 AMPERE METER OF PROPORTIONAL FLOW 1

I. MACHINE TRANSPORTATION
DUE TO ITS HEAVY MACHINE, THE TRANSPORTATION MUST BE SAFE. TO USE
SUITABLE LONG WOOD AS THE BASE STANDARD OF THE MACHINE, AND THEN USING
STACKING MACHINE TO TRANSPORT; OR HOLDING THE LIFTING HOLE OF TOP
MACHINE BY STEEL CABLE, LOCKING THE NUTS,AND MOVING BY CABLE HOISTING
PULLEYTILL THE RIGHT PLACE AND LOOK TO ITS BALANCE AT THE SAME TIME.
II. MACHINE INSTALLATION
1.( FOUNDATION ) : THE FOUNDATION MUST BE STRONG ENOUGH TO STAND THE MACHINE. AFTER THAT, TO TEST THE MACHINE’S BALANCE BY LEVER METER, IN ORDER TO MAINTAIN FUNCTIONS OF MACHINE AND PRECISION ELETRICAL INSTRUMENT.

2.(INSTALLATION OF WATER PIPE OF CHILLER): DURING LONG TIME HYDRAULIC PRESSING, OIL TEMPERATURE RAISING TO EFFECT ITS CONSISTENCY, EVEN AFFECT THE NORMAL OPERATION OF MACHINE. SO,USING THIS CHILLER TO KEEP THE OIL TEMPERATURE CONSTENT. THIS DEVICE USE 3/4” PIPE THREAD TO CONNECT THE THE INLET/OUTLET WATER PIPE. BETTER TO USE NORMAL TEMPERATURE OF TAP WATER,BUT NOT HARD WATER,TOAVOIDANY PRECIPITATION TO BLOCK THE WATER FLOW.

3.(POWER SOURCE & CIRCUIT PRESSURE): OPEN THE CONNECTING BOX BACK OF THE OPERATION PANEL, THEN CONNECTING 3 JOINTS OF R.S.T TO THE POWER WIRE. THE HIGHEST RATED PRESSURE OF HYDRAULIC PRESS TO BE SET 210KG/CM2.

4.(ENVIRONMENTAL REQUIREMENT) : THIS MACHINE IS FOR PROCESSING, AND

DIFFERENT DUE TO ITS USAGE AND PRODUCTION OUTPUT, THEREFORE IT SHOULD
NEED THESE BELOW CONDITIONS FOR MATCHING WORK:
A. Keep away from the place where is wet or over-hot.
B. Keep the workshop is ventilation.
C. Beware of electric leakage, water stain; fire precaution measure required
D. Keep proper space for the machine to make sure the good operation during mass production.
E. Keep place for semi-products, if need.
F. Keep one store for molds, to avoid any damage of the molds or any dust.Prepare to install the molds:

I. Make the machine under Manual system, keep the down heating plate in its down place and check if this plate is suitable for the mold, then prepare 8-12pcs of fasten clamps and gaskets.

II.Place the mold to down heating plate by fork lift and fix the down mold in the heating plate by fasten clamps and gaskets.

III.Finally, raise the machine to make the upper mold touch the heating plate:
A. If the mold is high: loosen the outside-screw of the upper plate, and ascend the molds to its max.height, then lock the inside-screw up and tight, then lock the outside-screw and fix the upper plate.

B. If the mold is lower than previous mold: use the previous high mold to descend the upper plate and then lock the inside-screw tightly and fix the plate. Then remove the high mold and put the new mold into the plate, and use the aboved mentioned way to fix the upper plate well.

C. Fixed the upper mold with the plate by fasten clamps and gaskets.

D. To check all the screws and nuts are well fixed, to prevent any case of screw or nuts loosen
during machine operation.

1. If the mold is high: ascend the mold till the upper heating plate, loosen the outside screw nuts of four pillars and then ascend the mold again, to stop ascending up to the max.height.Then lock the inside screw nuts and outside nuts then finally fix the upper heating plate.

2. If the mold is lower than the existing one: use the existing high mold to lower the upper heating
plate to the right place, and lock the inside nut; and then descen the high mold till down heating plate stops, then change the lower mold and use the same way as above mention to adjust the upper plate to the required plate.

3. To fix the punch mold: lock it by shims, to make sure it fixing on the upper heating plate.

4. To check all the nuts and fix all the bolts, inside nuts meet the outside nuts tightly, to avoid any
nut loosening during operation.
Melamine Crockery Compression Machine
