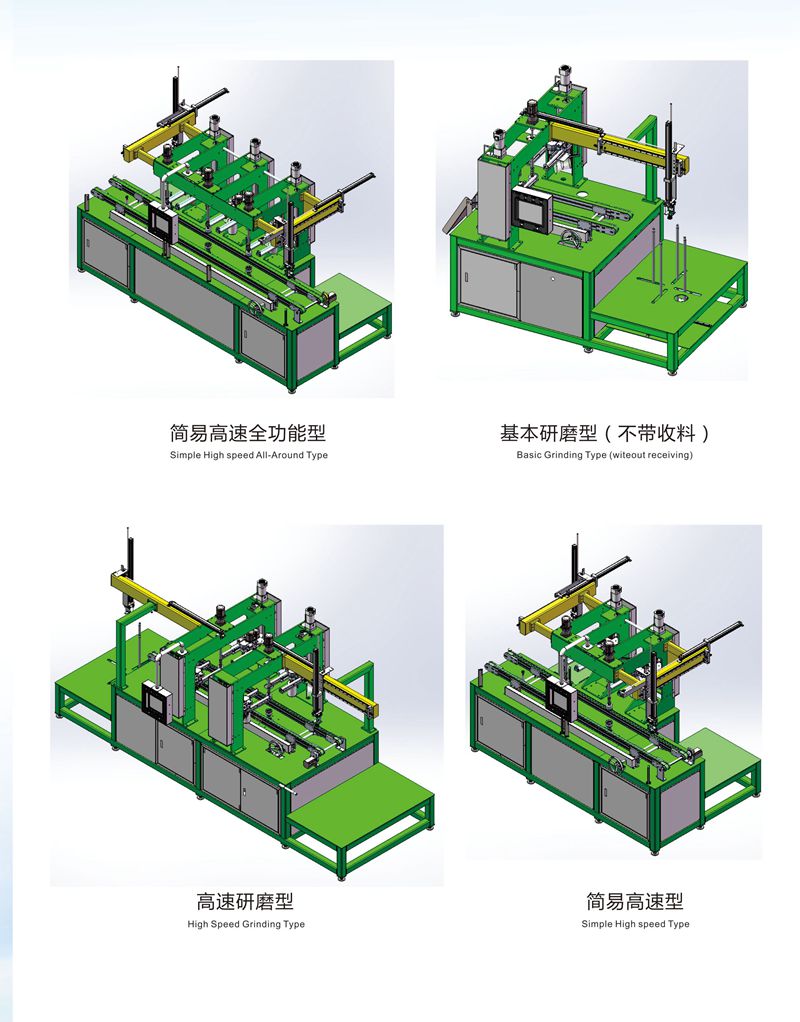

Full Auto Mf Crockery Grinding Machine

The machine grinds the burr automatically since it can judge the burr shape depends on the shape size of the tableware

  • item no.:

    SHM-376
  • lead time:

    50DAYS
  • product orgin:

    CHINA
  • brand:

    Shunhao
  • shipping port:

    XIANMEN SEA PORT
  • payment:

    TT/LC
  • color:

    GREEN
  • MOQ:

    1
inquiry now
features
Full Auto Mf Crockery  Grinding Machine


1:The machine grinds the burr automatically since it can judge the burr shape depends on the shape size of the tableware

2:It is able to adjust the grinding speed and depth according to the burr  thickness

3:Rough grinder head make of high quality carborumdum and can repeatedly grinding more than ten thousands piece tableware products

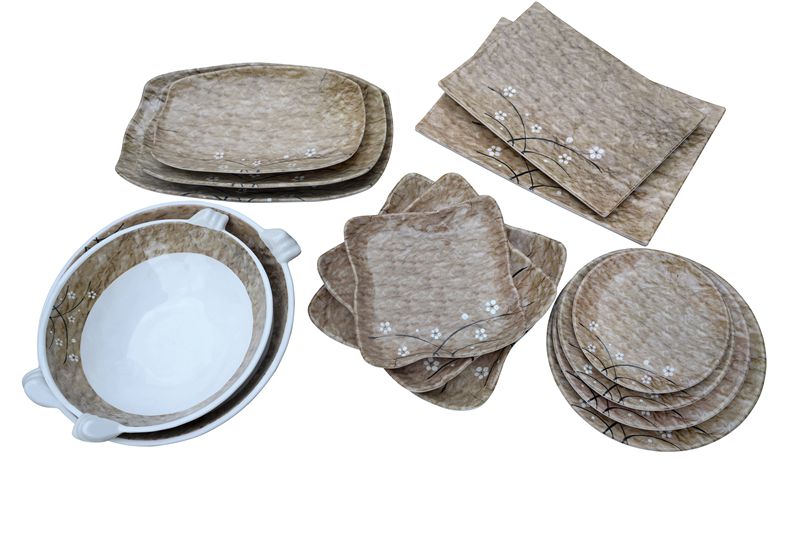

Mf Dinnerware Auto polishing Machine
4:Fine grinder head adopt flexible design,polishing the rough surface  and sharp angle after rough grinding,to achieve the effect of zero burrs

5:Buffing wheel use polishing cloth wheel,which can set the rotate speed and times depend on customers requirements to achieve the polishing quality.

6:The position and height of the head can be set,all the head can be used perfectly since the can adjust the head position automatically when grinding

7:Stacked placement for delivering and receiving material,drastically reduce the personnel operation time.

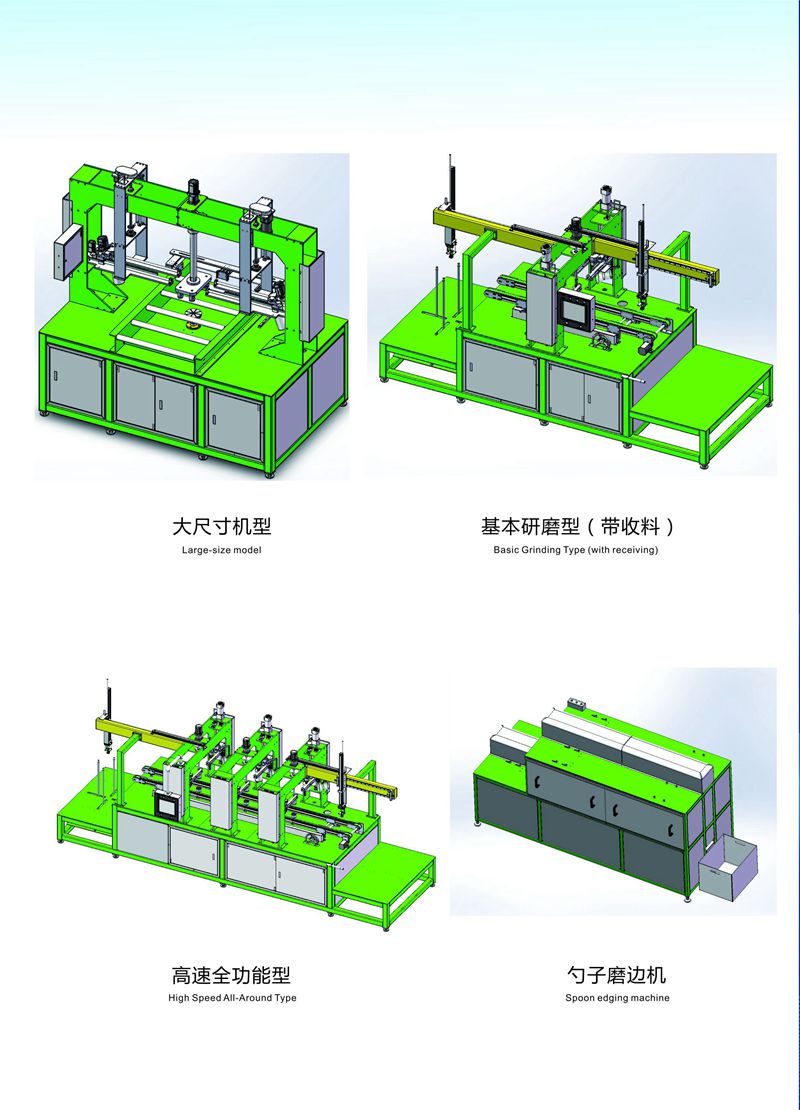

Mf Crockery Auto Grinding Machine
8:The Machine can grind such as circle,ellipse,polygon and special shape tableware
Full Auto Mf Crockery Grinding Machine
1: Problems encountered by melamine tableware manufacturers:
Difficulties in recruitment, seasonal orders, poor working conditions, high labor intensity, and difficult employee management.
Full Auto Mf Crockery  Grinding Machine
2: automatic melamine tableware edging machine:
1) Machine points, coarse grinding, fine grinding, two grinding heads, automatic loading and unloading (receiving material, receiving material)

2) Two grinding heads are finely ground and two grinding heads are ground. The grinding head can be automatically lifted and lowered, and the height is automatically controlled.

3: Machine and Labor Comparison:
1 machine = 1.5 workers (11 hours)
2 machines = 3 workers (11 hours)
3 machines = 4-5 workers (11 hours)
At present, the wages of edging workers are about RMB 4000-6000/month (skilled workers)
The automatic edging machine only needs an ordinary porter to discharge and receive materials. One person can operate at least 3 machines. The equivalent of an ordinary porter can replace 4-5 skilled edging workers (11 hours).
Machines can be produced 24 hours a day in two shifts. Two ordinary porters can replace 8-10 skilled edging workers.
The average porter is about RMB2500-3500/month, the two porters are paid RMB5000-7000/month, and the three machines can save about RMB27000-53,000/month each month.

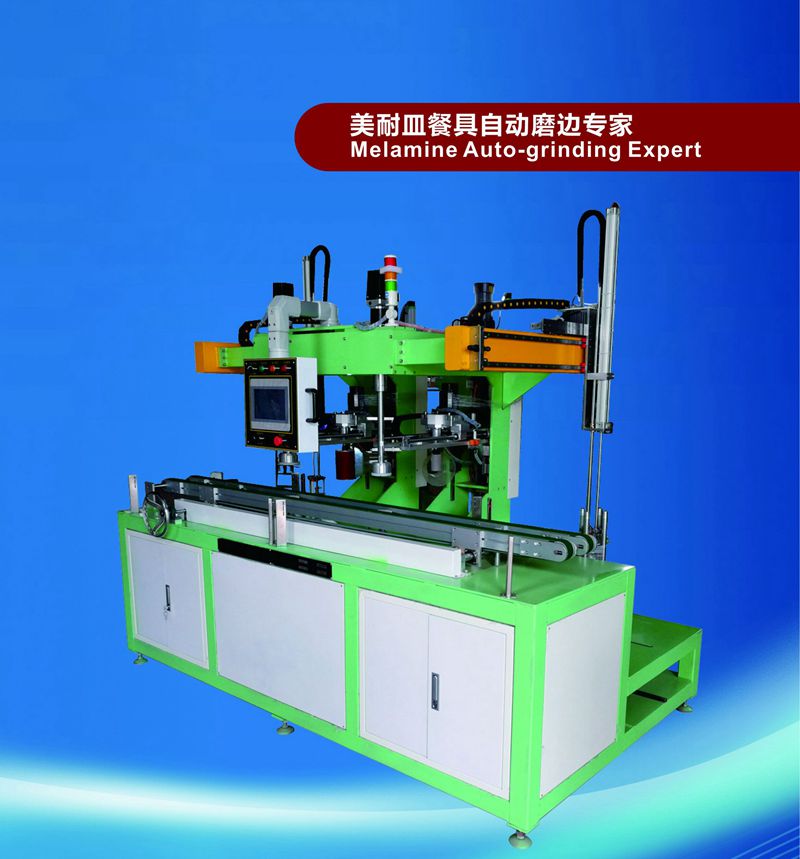

Uf Crockery Auto Grinding Machine
4: Machine cost recovery: monthly labor cost savings RMB27000-53000/month, each year the company can earn more RMB324000-636000

5:Advantages of automatic edge grinding machine: simple operation, replacement of a product of different specifications as long as 5-10 minutes, no need for skilled workers, as long as a porter can work 24 hours, the workers stopped, the machine does not stop, operation safety In the peak season, customers can open more machines. In the off-season, they can open fewer machines. Enterprises can reduce expenses, reduce production costs, and reduce the burden on enterprises.
Mf Crockery Auto Grinding Machine
6: Automatic edging machine technical parameters:
Weight: 2.6TON
Volume: L3*W1.5*H2.2METER
Total power: 5KW
Electricity per hour: 0.3 kW
Working voltage: AC220V 50HZ
7: Edge size:
Maximum: 60CM
Minimum: 10CM
UF Tableware Auto Polishing Machine
 1:Deliver Material
Stacked placement  and manipulator auto-fetch the material to conveyer belt,Drastically reduce the personal operation time,the maximum quantity is 230pieces.

2:Rough Grinding
1)   Can grind polygon products.
2)   Adjust the grinding speed and depth according to the burr thickness
3)   5seconds can grind one circle product as usual
4)   8seconds can grind one special shape product as usual

3:Fine Grinding
1)   Flexible grinding,polishing surface after rough grinding.
2)   Reducing surface roughness,and round comers the acute angle after rough grinding.
3)   5seconds can grind one circle product as usual.
4)   8seconds can grind one special shape product as usual.
Uf Crockery Auto Grinding Machine
4:Polishing
1)   Buffing,for polishing surface after find grinding
2)   Automatically setting waxing time,auto alarm when no wax.
3)   5seconds can grind one circle product as usual
Melamine Dinnerware Auto Grinding Machine
5:Delivery
1)   Adjustable design,that the size and width can be adjusted according to products.
2)   Suitable for diameter 50mm-500mm
6:Receiving the materials
1)   After grinding,the manipulator collects the product and then stacking placement.
2)   The maximum collect quantity is about 230pcs
Mf Dinnerware Auto polishing Machine
