Good Price 5KW Preheater Machine for Melamine Tableware

Preheater machine for melamine tableware/melamine tableware moulding machine/melamine moulding compound

  • item no.:

    SDY-520
  • product orgin:

    CHINA
  • brand:

    Shunhao
  • shipping port:

    XIANMEN SEA PORT
  • payment:

    TT/LC
inquiry now
features
Melamine Preheater Machine for Melamine Moulding Compound and Urea Moulding Compound
Principle:
Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.
Function:
After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.
Standard Machine Model:
(1). 3KW, 5KW, 10KW Plate electrode type.
(2). 7KW Roller electrode type.

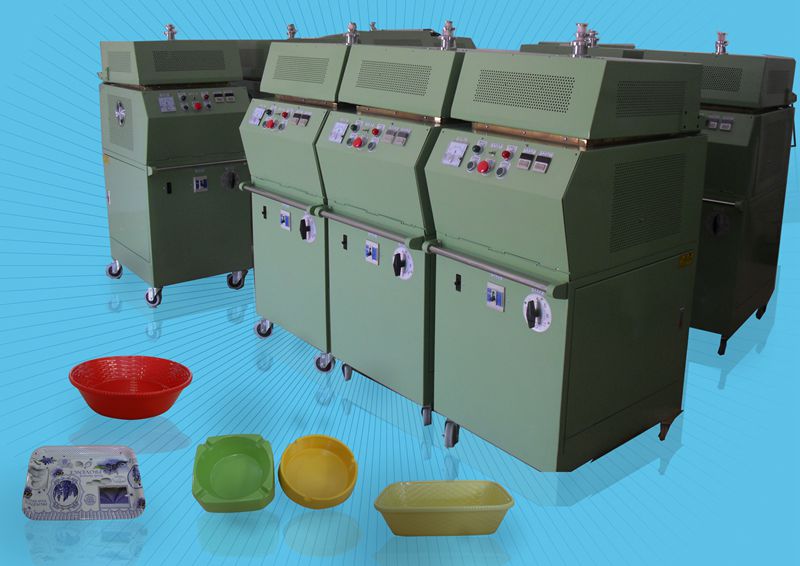

Melamine Preheater Machine

Melamine Preheater Machine is Widely used in bakelite,electrical parts and melamine tableware forming the preheating,and used in semiconductor IC,charger of forming electronic devices
warm machine using the advantages of high-frequency
1:Motor foof closed institutions,superstructure opening angle large,latch the correct position,operations and strong.
2:Concise panel,easy to operate,convenient storage of raw materials, adjust the parameters of a small,no can all operation.
3:A variety of security functions and equipment protection devices
1)A variety of security agencies/high ground/cover lock to confirm switch/high-cycle delay protection swith
2)Lord,vice-powder switch of the double protection device
3)Vibration in the hari vacuum tube,there are the cooling air pressure protection swith,oscillation loop,to prevent abnormal occurrence to start
4)three dust filter protection devices
Best suited for two-color products melamine preheatering ,in the standard models on the basis of the substantial increase production capacity and reduce material waste.
Melamine Preheater Machine

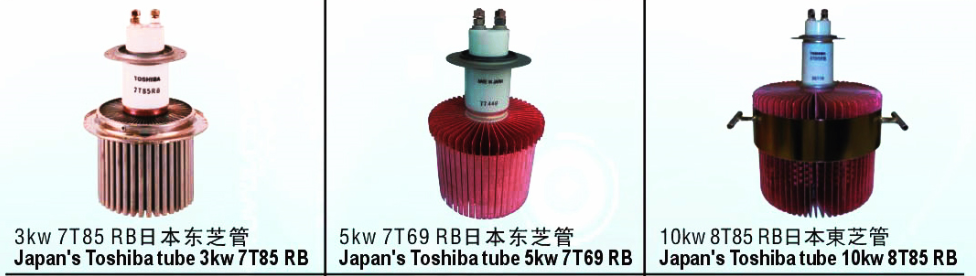

TOSHIBA Oscillation Tube:Using TOSHIBA original imported oscillation tube, more powerful output power, stable and durable than other brand.
Melamine Heat Machine

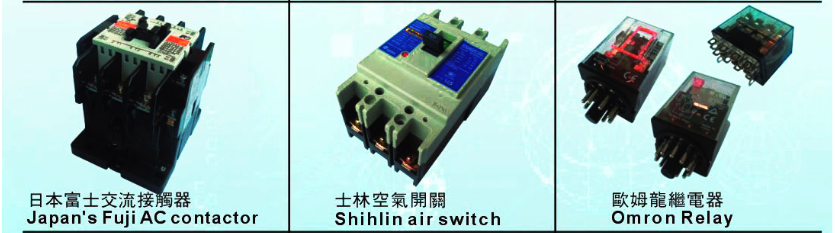

All contactor and air switch and repaly are import from JAPAN GERMANY

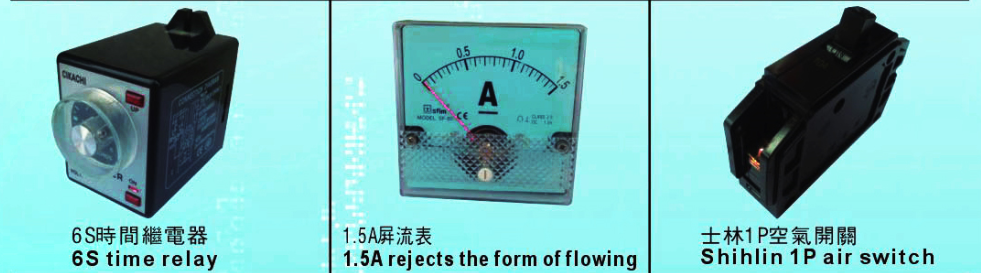

Melamine Power Heat Machine


Specification
SDY320
SDY-520
SDY-720
SDY-1020
OUTPUT
3KW
5KW
7KW
10KW
POWER SOURCE
380V/415V
380V/415V
380V/415V
380V/415V
POWER INPUT
6.7KVA
11KVA
13KVA
20KVA
OSCILLATION FREQUENCY
62MHZ
62MHZ
62MHZ
27MHZ
OSCILLATION TUBE
7T85RB
7T699RB
E3069RB
8T85RB
VOLTAGE SWITCHING
3-STAGE
3-STAGE
3-STAGE
3-STAGE
TIME
                                                999.9S
ARRANGEMENT OF HOOD
MOTOR TYPE AUTOMATIC OPENING AND CLOSSING
PREHEATING POWER
110DEGREE WITHIN 60SECS
MELAMINE RESIN
500GR
1000GR
1200GR
3000GR
UREA MOULDING COMPOUND
500GR
1000GR
1500GR
3500GR
PHENOILC RESIN
500GR
1200GR
1500GR
300GR
ELECTRODE SIZE
240*280m/m
310*360m/m
340*380m/m
450*560m/m
ELECTRODE SPACING
25-60m/m
30-70m/m
30-70m/m
35-60m/m
DIMENSIONS
500*775*1280mm
600*850*1520mm
600*850*1520mm
820*1150*1720mm
WEIGHT
180kgs
260kgs
320kgs
600kgs
WOODEN CASE SIZE
600*850*1570mm
750*950*1700mm
730*950*1700mm
960*1230*1850mm
