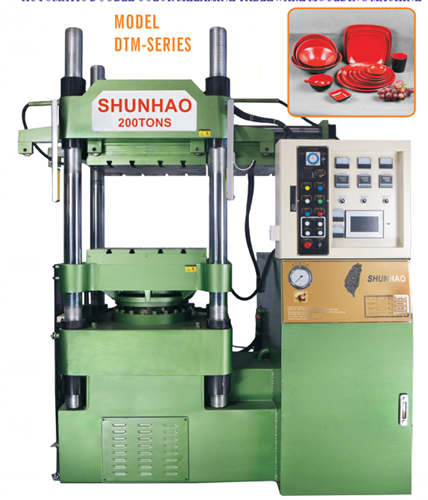

melamine press machine from Shunhao

QuanZhou ShunHao Melamine Moulds Co.,Ltd , As the professional manufacturer of quality press mould and press machine for varity of Melamine Tableware
  • item no.:

    SH-500TONS
  • product orgin:

    CHINA
  • brand:

    Customized
  • shipping port:

    XIANMEN SEA PORT
  • payment:

    TT/LC
  • MOQ:

    1
inquiry now
features
QuanZhou ShunHao Melamine Moulds Co.,Ltd , As the professional manufacturer of quality mould  and machine for varity of Melamine Tableware
1:Stable vertical pressuere,the air release frequence is up to 99times at most,pressing time and air release time can be freely set and adjusted,the air releasing distance can be freely set
2:Pressing circulation system model is also available under customers requirements,closing&opening of mold in the beginning is operated at low speed,then synchronize with high speed mold clamping and returning,it is not only protect the molds but also save time
3:Easy and automatic operation,without noise
4:suitable to be used in the molding operation of urea and rubber,melamine


Spec SHM-150T SHM-200T SHM-300T SHM-400T
Clamping Force-Ton 150 250 300 400
Plate Size-mm 660*620 680*620/720*720 720*720/900*860 900*860
Cylinder Diameter-mm 300/315 368 450 500
Stroke-mm 480 580 560 560
Daylight-mm 680 780 810 950
Pump Pressuer-kg/cm3 210 210 210 210
Motor-hp 7.5 10 15 15
Heater Capacity-kw 15 20 21.6 40
Oil Reservoir Capacity-gallon 100 120 200 250
Machine Size-L*W*H(MM) 2720*1890*2600 2300*1350*3000 2650*1850*2670 2650*1780*2870
Net Weight Approx-kgS 5000 5300/7650 8970/10500 11000

Prepare to install the molds:
I. Make the machine under Manual system, keep the down heating plate in its down place and check if this plate is suitable for the mold, then prepare 8-12pcs of fasten clamps and gaskets.
 II.Place the mold to down heating plate by fork lift and fix the down mold in the heating plate by fasten clamps and gaskets.
 III.Finally, raise the machine to make the upper mold touch the heating plate:
A. Fixed the upper mold with the plate by fasten clamps and gaskets.
B. To check all the screws and nuts are well fixed, to prevent any case of screw or nuts loosen during machine operation.
1. If the mold is high: ascend the mold till the upper heating plate, loosen the outside screw nuts of four pillars and then ascend the mold again, to stop ascending up to the max.height. Then lock the inside screw nuts and outside nuts then finally fix the upper heating plate.
2. If the mold is lower than the existing one: use the existing high mold to lower the upper heating plate to the right place, and lock the inside nut; and then descen the high mold till down heating plate stops, then change the lower mold and use the same way as above mention to adjust the upper plate to the required plate.
3. To fix the punch mold: lock it by shims, to make sure it fixing on the upper heating plate.
4. To check all the nuts and fix all the bolts, inside nuts meet the outside nuts tightly, to avoid any nut loosening during operation.
china melamine kids mug supplier

1. power before operation, and check the motor if its rotation correct.
2. Make machine to run in “Manual way”during operation, ascend the machine slowly. Install the nuts and lock with screw for all the 4 pillars. And then descend the machine to make the nuts to meet its right place.
3. After locking the nuts, use the hammer to lock tightly by Anti-clockwise derection.
4.Correction of the parallel of the heating plate: firstly ascend the screw nuts of upper heating plate, and then ascend the machine, to seperate the upper heating plate from the screw nuts, but do not touch. And then combine the screw nuts 1 and 2 together. Then pressure the machine by 230kg/cm2 to lock the screw nuts tightly by anti-clockwise direction.
china melamine compartment tray supplier
