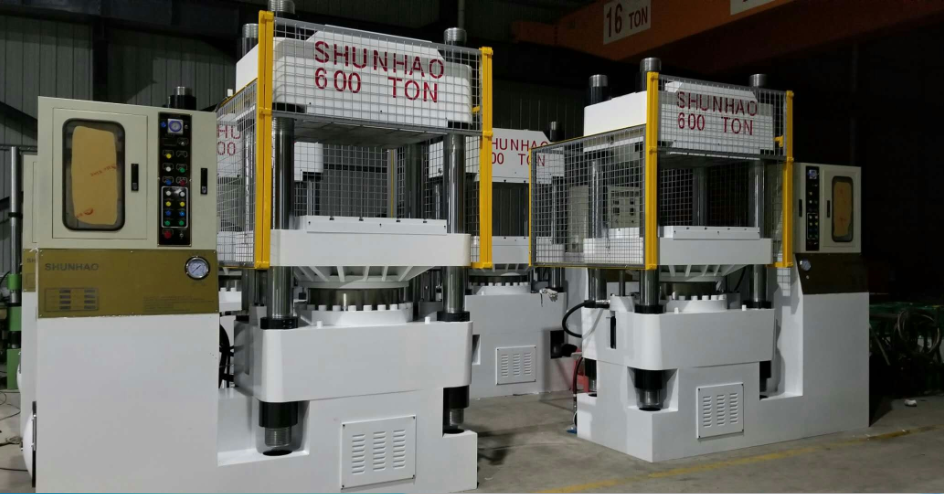

Automatic Toilet Seat Cover Compress Machine With Single Station

Various rubber and bakelite and Uf Toilet Seat Cover moulding operation

item no.:
SHM-600T
product orgin:
CHINA
brand:
Shunhao
shipping port:
XIANMEN SEA PORT
payment:
TT/LC
color:
White
MOQ:
1

inquiry now

features

1:Stable vertical pressuere,the air release frequence is up to 99times at most,pressing time and air release time can be freely set and adjusted,the air releasing distance can be freely set

2:Pressing circulation system model is also available under customers requirements,closing&opening of mold in the beginning is operated at low speed,then synchronize with high speed mold clamping and returning,it is not only protect the molds but also save time

3:Easy and automatic operation,without noise

4:suitable to be used in the molding operation of urea and rubber,melamine

suitable for the melamine, urea, bakelite, fiber and other thermosetting material production of tableware products. Such as bowl, cup, dish, chopsticks, spoon, plate, smack-box, starch imitation porcelain tableware plant fiber imitation porcelain tableware plate fiber imitation procelain tableware and so on.

Spec	SHM-300T	SHM-400T	SHM-500T	SHM-600T	SHM-800T
Clamping Force-Ton	300	400	500	600	800
Plate Size-mm	720720MM/900860MM	900*860MM	11401100MM/10001000MM	1200*1140MM	1800*1400MM
Cylinder Diameter-mm	450	500	560	620	700
Stroke-mm	560	560	580	610	700
Daylight-mm	810	950	1000	1020	1060
Pump Pressuer-kg/cm3	210	210	210	210	210
Motor-hp	15	15	15	20	30
Heater Capacity-kw	20	27	30	30	40
Oil Reservoir Capacity-gallon	200	250	250	300	355
Machine Size-LWH(MM)	248014902945	258015003800	281017053135	300017504100	322018504350
Net Weight Approx-kgS	6650/7250	8960	11000	16500	26000

tags : Automatic Toilet Seat Cover Compress Machine Toilet Seat Cover Forming Machine Toilet Seat Cover Molding Machine Mdf Toilet Seat Cover Moulding Machine Uf Toilet Seat Cover Compress Machine Uf Toilet Seat Lid Compress Machine
