Good Price and Design Urea/Melamine Molding Compound equipment Maker

We are the Urea/Melamine Molding Compound equipment Maker

item no.:
SHD7777
lead time:
90DAYS
product orgin:
CHINA
brand:
Shunhao
shipping port:
XIANMEN SEA PORT
payment:
TT/LC
color:
White
MOQ:
1

inquiry now

features

Good Price and Design Urea/Melamine Molding Compound equipment Maker

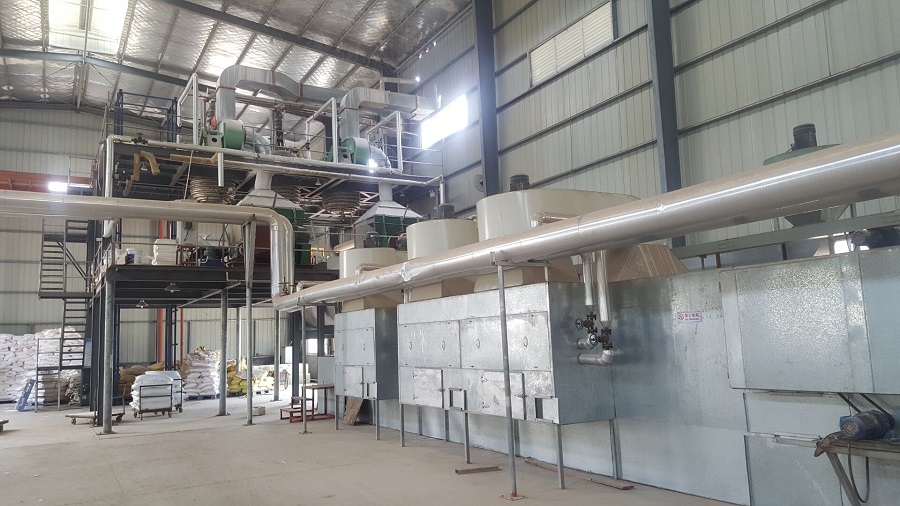

Glazing Molding Compound equipment Maker

一：Instruction

Melamine Molding Compound equipment Maker

Amino moulded plastics are thermosetting plastics based on amino resin. The powdered products after drying and grinding can be used for molding and processing of tableware, electrical appliances, sanitary ware, chess and other products.

The amino molding plastic production line is mainly divided into three categories: electric jade powder (A1), melamine powder (A5), and glazing powder (LG). The main equipment consists of reaction axe, kneader, dryer, crusher, ball mill, and sieve powder. Machine etc.

二: Technical Features

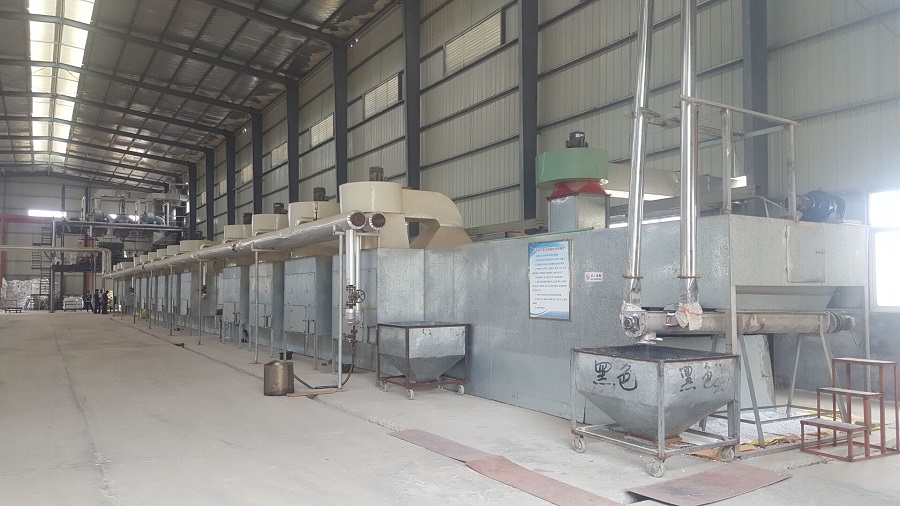

Urea Molding Compound equipment Maker

1: The company can design, manufacture, design and install complete sets of amino mould plastic material production lines for customers. The services include plant design, equipment layout design, manufacture of complete sets of equipment, on-site installation of process piping, electrical control and cable wiring installation. The company can support the transfer of technical formulas and operating formulas of electric jade powder (A1), melamine powder (A5), and glazing powder (LG) to provide on-site commissioning services for process engineers.

2: The output of the complete production line designed by our company is generally 10 tons - 30 tons/day, and the maximum design annual production is nearly 10,000 tons. The production line can also be customized according to the user's output requirements. The products made by our company's equipment and supporting process recipes can be produced. Reached European and American standards.

LG Molding Compound equipment Maker

3: No pollution during the production process, no waste gas emissions, high workshop cleanliness

4: Our company can provide intelligent electrical systems for customers. Its main advantages are

1) Intensive management, the precision products such as frequency converters and power distribution cabinets are centrally arranged in the electrical room, and only the operating cabinets are reserved on the site to increase the service life of the electrical appliances.

2) Temperature control, through over-temperature alarm, over-temperature shutdown steam, dryer automatic temperature adjustment and other means to ensure product safety, precise control

三：Specifications

Items	Capacity,300dyas/24hours	Installed powder	Area	Steam consumption	Actual power consumption
UMC LINE	6000T	419.25	700	1.5	250kwh
MMC LINE	6000T	445.75	800	1.2	350-450KWH
LG	2000T	168.6	500	1.3	110KWH

Uf Molding Compound equipment Maker

一）Reactor

1: Introduction

Reaction axe is the most common equipment in chemical industry. The company mainly produces stainless steel reaction axe, which can be customized according to the user's reaction medium and reaction conditions (reaction temperature, temperature rate, and medium viscosity requirements).

2: Technical parameters

For the reaction conditions of the amino molding compound industry, the company's conventional reaction parameters are as follows.

MODEL NO	Volume	Chemicals	Heating channels	Material	Power(kw)	Negative pressure system
SHF-1000	1000L	Urea formaldehyde resin	External coils	CS,SS304	3	Sucking machine condenser
SHF-1600	1600L	Urea/melamine formaldehyde resin	Internal&external coils	CS,SS304	4	Sucking machine condenser
SHF-3100	3100L	Urea formaldehyde resin	Internal&external coils	CS,SS304	5.5	Sucking machine condenser
SHF-4000	4000L	Urea formaldehyde resin	Internal&external coils	CS,SS304	7.5	Sucking machine condenser
SHF-5000	5000L	Urea formaldehyde resin	Internal&external coils	CS,SS304	11	Sucking machine condenser

Kneading Mixer

A: Product Introduction

Kneader is the ideal equipment for kneading, mixing, vulcanizing, and polymerization of high-viscosity, elasto-plastic materials. Kneader can be used to produce silicone rubber, sealant, hot-melt adhesives, food gum bases, pharmaceutical preparations, etc. Kneading machine is a Special mixing and mixing equipment, with two blades, fast blades are usually at 42 rpm, slow paddles are usually rotated at 28 rpm, different paddle speeds allow rapid and homogeneous mixing of the kneaded material

B：product features

The company's kneader for the amino mold industry, with the following improvements

1: The outer edge of the blade can be manufactured with a tooth profile to better chop the pulp

2: supporting temperature control system to prevent resin aging

3: supporting the special pulp to place the cover to reduce the load of the equipment motor when feeding

C：Specification

Model	Volume	Products	Material	Power(kw)	Transfer	Heating	Dehydration
SHN-500	500L	UMC	304CS,SS304	7.5	Turn over the cylinder	Steam/oil	Sucking machine
SHN-1500	1500L	UMC	304CS,SS304	18.5	Turn over the cylinder	Steam/oil	Sucking machine
SHN-2000	2000L	UMC/MMC	304CS,SS304	22	Turn over the cylinder	Steam/oil	Sucking machine vacuum dehydration
SHN-2900	2900L	UMC/MMC	304CS,SS304	30	Turn over the cylinder	Steam/oil	Sucking machine vacuum dehydration
SHN-4800	4800L	UMC/MMC	304CS,SS304	45	Turn over the cylinder	Steam/oil	Sucking machine vacuum dehydration

Cooling Bin

一： Product introduction

The freezing tank is a special equipment designed by the company for the amino molding plastic production line. It is mainly used with a kneader. The rotation speed of the paddle in the freezing tank is relatively slow (0-3 RPM), and the blades are angled so that the material can be pushed from the entrance to the exit. The rotating paddle can be used to loosen the material, and the freezing tank jacket can be heated by cooling water or steam (according to the ambient temperature) and discharged through the freezing tank into the dryer, which can improve the drying efficiency.

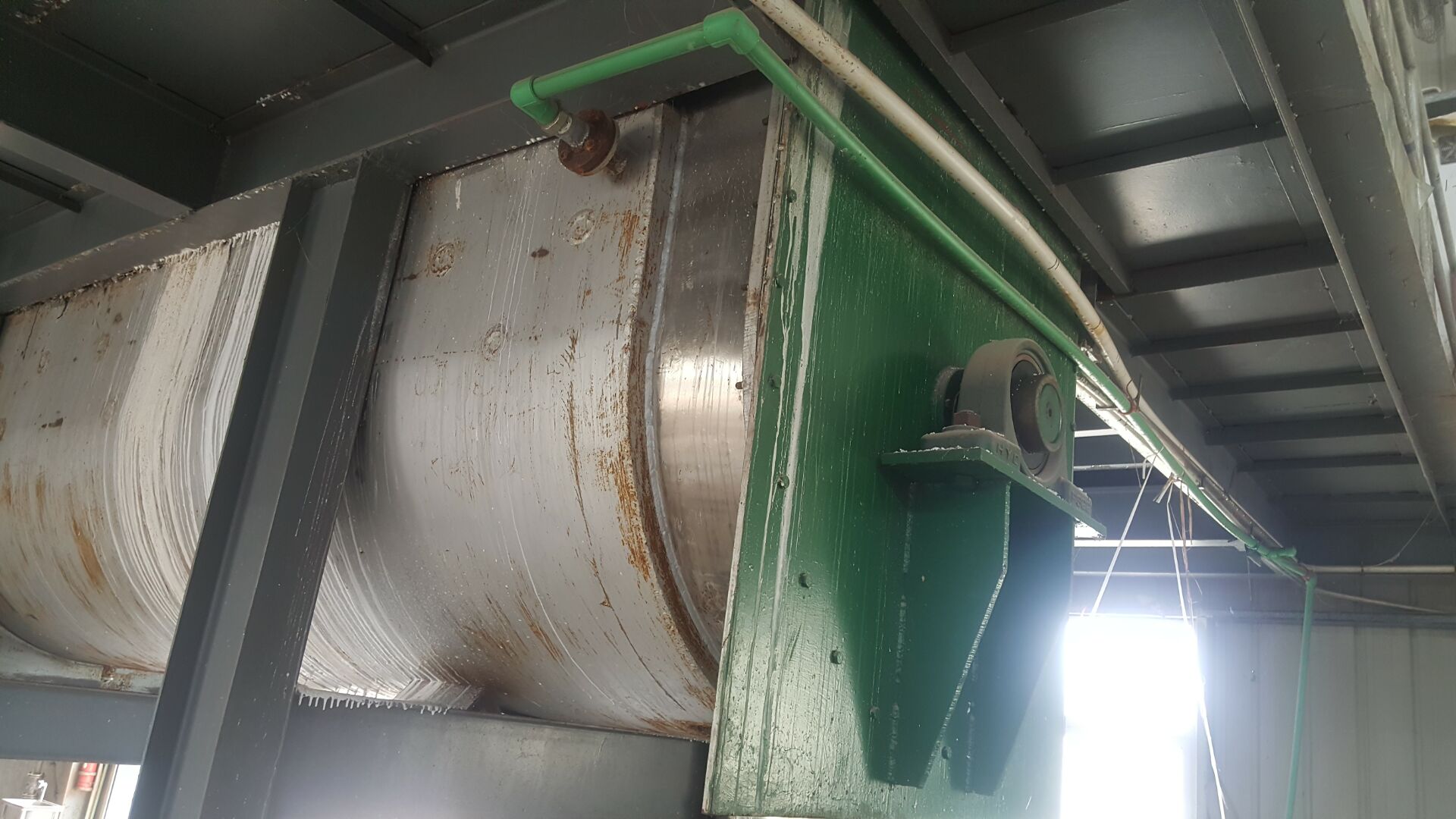

Melamine Molding Compound Line equipment

二：Specifications

Model	Volume	Products	Material	Powder	Transfer	Drive system
SLD-4000	4000L	UMC/MMC	CS,SS304	5.5	Belt/swinging spiral	Frequency control
SLD-5000	5000L	UMC/MMC	CS,SS304	7.5	Belt/swinging spiral	Frequency control

Belt Dryers

A: Product Introduction

The dryer is the core link of the amino molding plastic production line. According to the characteristics of the amino resin, the belt dryer designed by our company is mainly based on low-temperature drying. It is energy-efficient and can be customized to meet the different needs of customers due to the belt dryer. The floor space is large. In the case of drying method and constant heat transfer area, the original plant layout can be adapted to the customer's original size without affecting the output. At the same time, it can be designed according to the customer's special output requirements. Dryer's walking speed is adjustable. General process requirements are 2-5 hours-3 hours.

B: Application

1: Continuous drying of amino molding resin, including, UMC, MMC

2: According to the small batch product can be specially designed small belt dryer

3: Other blocky, granular products, especially products that do not overheat at drying temperatures (over 100 degrees Celsius)

Glazing Molding Compound equipment Maker

C: technical characteristics

1: Through a unique wind road design with efficient radiators and traps, production capacity increased by 20% compared with similar products

2: Use special stainless steel high and low nets to improve the drying efficiency, and the material and web are not sticky

3: The use of the company's own heat exchanger, high heat transfer efficiency, while suitable for steam heat transfer or heat transfer heat transfer oil.

Model	Capacity	Finished product	Heat Radiation	Turn-over times	Belt width(m)	Power(kw)
SLH-1.5*25	250-350	LG	450	1	1.5	40
SLH-1.5*31	350-450	LG/UMC	500	2	1.5	48
SLH-2*37	500-550	UMC	650	2	2	55
SLH-2*35	750-850	UMC	900	2	2	90
SLH-2*38	900-970	UMC	1000	2	2	113
SLH-2*43	700*750	UMC/MMC	800	3	2	70
SLH-2*45	750-850	UMC/MMC	1000	3	2	75
SLH-2*47	1100-1400	UMC/MMC	1350	3	2	118
SLH-2.2*41	1200-1300	MMC	1100	3	2	75
