Automatic oil hydraulic compression molding machine for melamine tableware

AUTOMATIC MELAMINE MANUFACTURING MACHINE FROM SHUNHAO

  • item no.:

    SH-300TONS
  • product orgin:

    CHINA
  • brand:

    Shunhao
  • shipping port:

    XIANMEN SEA PORT
  • payment:

    TT/LC
  • color:

    GREEN
  • MOQ:

    1
inquiry now
features
Product Feafure
1. This compression moulding machine adopts heat treatment steel plate of strong hardness. The precision is high after grinding, wear-resistance and impact resistance.
2. The speed of die clamping & returning is adjustable for being set as 2-section. If the finished products are not pushed out automatically, the machine is equipped with a switch for not pushing the die.
3. Suitable to be used in the molding operation of melamine two-color table ware and mahjong domino.
AUTOMATIC MELAMINE MANUFACTURING MACHINE

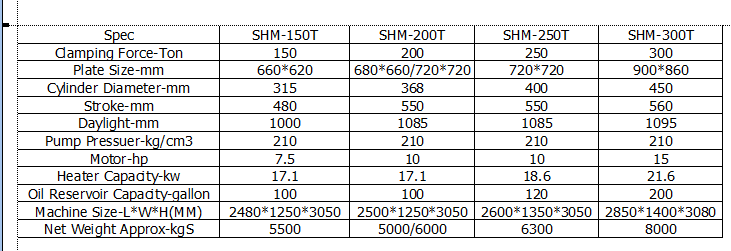

Sliding-Plate Type Compression Machine
Two-color melamine tableware and.
Three-color Mahjong.
Suitable for melamine tableware, including Chopsticks, Mugs, Bowls, Plates, spoons, salad bowls, tray, two color melamine tableware and so on.
1:Master cylinder nominal pressure-standard
2:Maximum working pressure-standard
3:Master cylinder piston diameter-Bore size standard or larger
4:Master cylinder work stroke:550mm
5:Adjustable table spacing-big
6:heating plate size-standard
7:Tension column (heat treatment grinding)-Hot water hardening surface hardness is not easy wear and tear wear
8:Hydraulic pump-Sundial series durable
9:Motor specifications-TAiWAN BRAND
High Frequency Preheating Machine
10:computer system-Taiwan brand selection of low-temperature host, will not aging at high temperature, stable performance, fast response, long life, with a memory card program update convenience
11:Oil system-2016 latest high-performance oil, fast response, fast, strong stability, reasonable maintenance valve configuration simple and easy
12:Capacity and efficiency-The same set of products 24 hours a day more than other plants to increase the output of 150-200 model yield yield rate of 95%
13:Mechanical operation-Easy-to-use integrated operator interface, easy worker training and new special features to handle more product variations and diversified material changes
14 hydraulic system components:
(1) pump: Japanese joint venture KASITER brand high-performance PV2R1 double vane pump.
(2) Valves: Electromagnetic directional valves and various types of plate valves are used in the original well-known products in Taiwan Valves. Anti-fouling ability, excellent work performance.
(3) The main cylinder seals: Japanese original NOK polyurethane seals, pressure wear, long service life.
Melamine Compression Molding Machine
15. Circuit Control System: (1) the use of computer control system
(2) PLC host and the pressure module using the original Feng Wei brand in Taiwan.
(3) man-machine interface: the Japanese Fuji brand.
(4) mold temperature control using SSR solid state relay, quiet and no noise, long service life.
(5) Pressure control The German brand pressure sensor with pressure module set control, precise control.
16. Mechanical system:
(1) The main castings are high-strength ductile iron, after mechanical design, in line with the long-term work under high pressure.
(2) The main cylinder piston white iron material, the surface is smooth and wear-resistant, durable.
17. The oil system is limited pressure control, can be fast, slow rise and fall movements; the system alone with relief function.
18. The main console and electric control box, hydraulic system for the split structure, easy to disassemble.
Melamine Compression Molding Machine
19. Oil system are high-speed control system.
20. Machine hot plate insulation asbestos board.
21. Up and down control of the machine adopts Taiwan Yangming proximity induction control.
